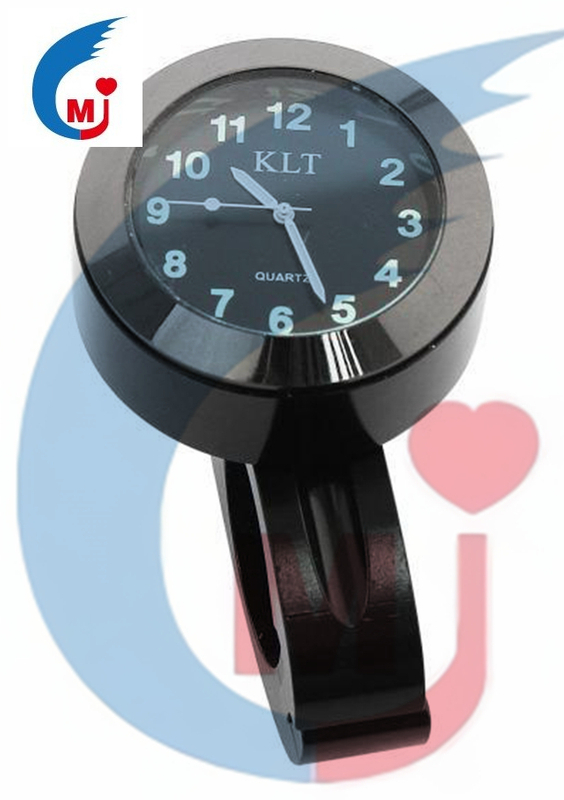

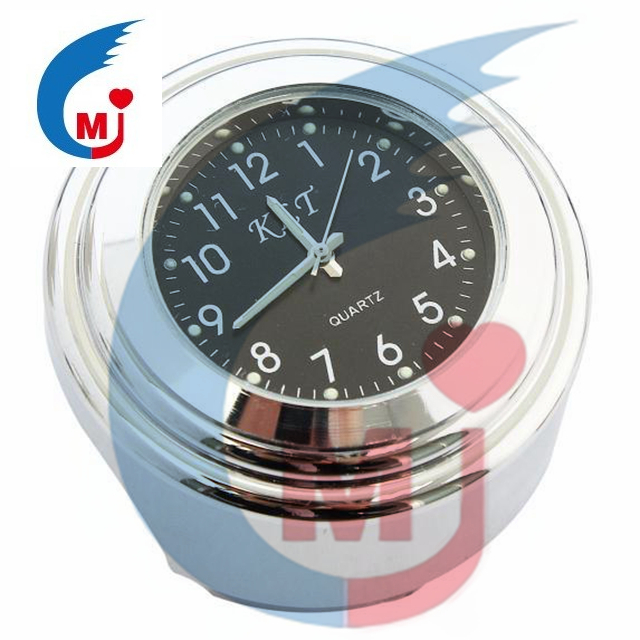

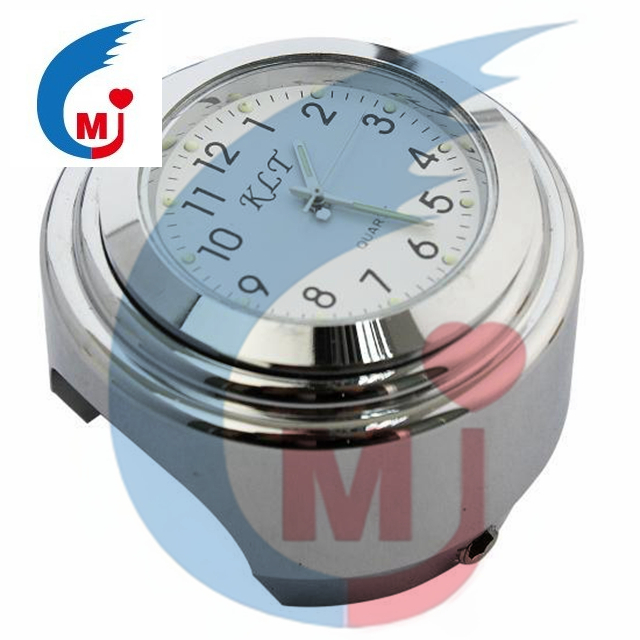

Motorcycle Handlebar Clock of Universal

Quantity:
  • CNC
  • EMAX

New product:CNC motorcycle handle bar clock.

1.Color:black, white, noctilucence blue. 7grade high quality electroplate.
2. Shockproof, waterproof, anti rust
3.High-strength mineral glass surface
4.Fitment: Most of the motorcycle / cruiser / Chopper / yacht / suvs
5.Japanese gear&battery
6.Diameter: 46mm, Height: 31mm, mount slot depth: 26mm

7.Packing: shirink card (1 clock & 1 thermometer)

8.G.W.: 160g/set ( include 1absorbing gasket & 1 hexagon wrench)

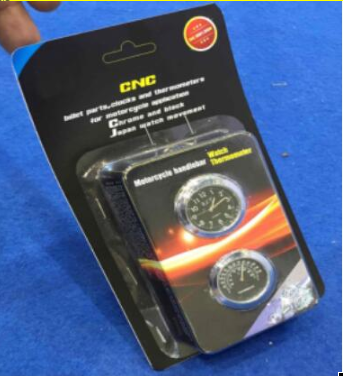

Packing

QQ图片20191216143022

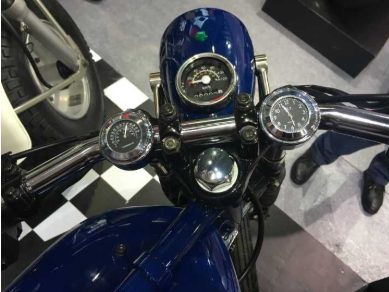

INSTALLATION
1. Put the mount onto the 1'' handlebar and use the small wrench to tight the set screw onto the handlebar.
2. For 7/8'' handlebar, put the rubber pad into the mount  slot first and then mount onto 7/8'' handlebar, use the   small wrench to tight the set screw onto the handlebar.
3. Remove the pull tab from the clock crown shaft.
4. Turn the crown to adjust the time of the clock.
5. Push the crown into place to make sure the clock is running.
6. Press-fit the clock with rubber gasket into the mount in place.
Remark:For thermometer, no need step 3, 4 and 5.

QQ图片20191216143046
